Sterilizing Capsule Filters Asymmetrical PES membrane
Short Description:
with Staubli connection at the vent, which enables in-line
integrity test.
The PES membrane bio-burden reduction capsule utilizes
single layer hydrophilic polyethersulfone membrane. It offers
broad chemical compatibility, high flflow rate and low protein absorption rate
Polyethersulfone is particularly suited for the filtration of products that
contain substances that adsorb to the media The lower binding characteristics
of polvethersulfone make it a good choice for filtration of valuableprotein solutions

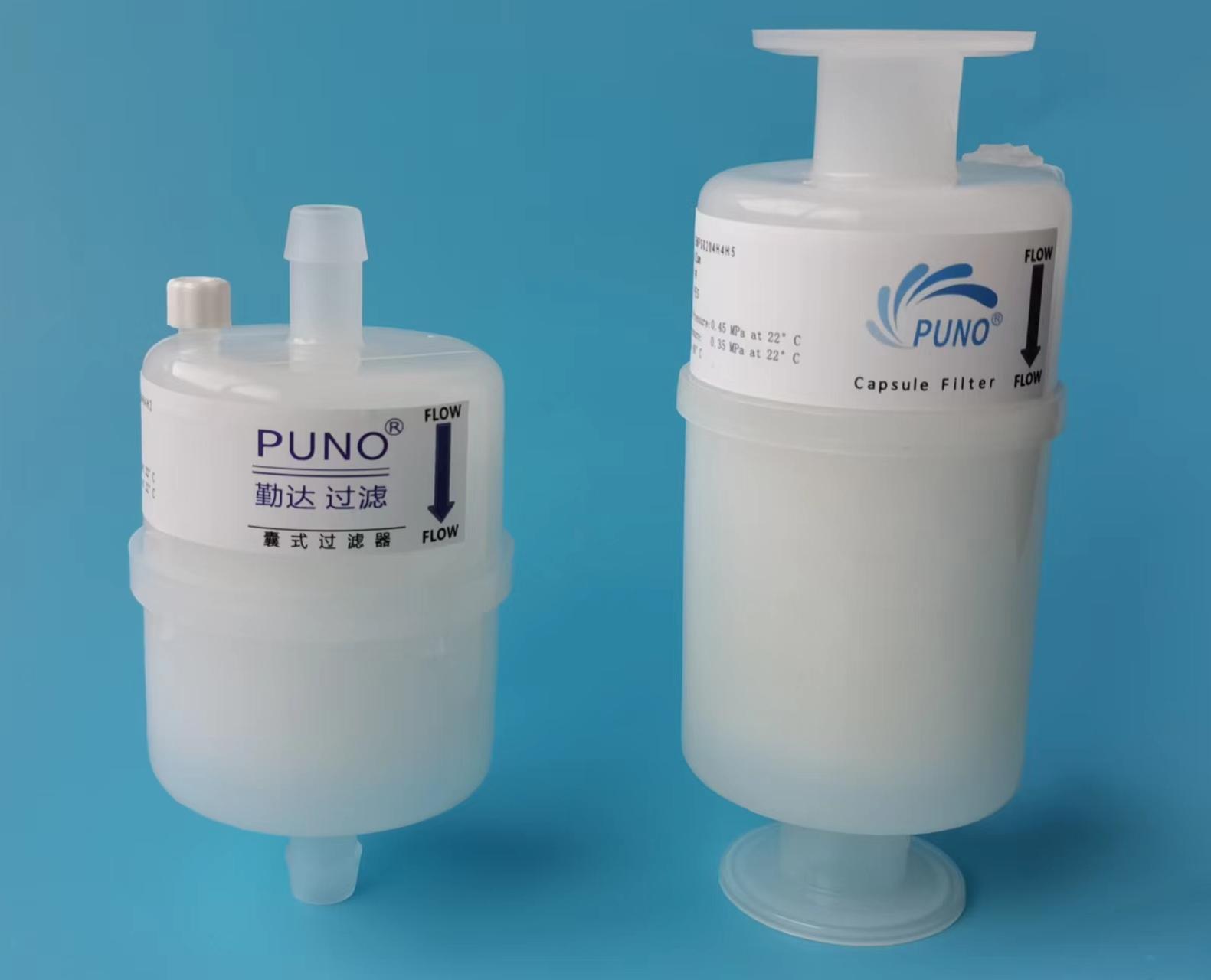

Capsule Filter
Key Features
◇ Pleated structure improve filters dirt holding capacity and high throughput, and prolongs the filters service life;
◇ The disposable structure does not require a stainless steel housing, making the filters more economical, low cost and convenient than the conventional filter methods;
Capsule filters are using pleated processing, with compact structure and large filter area, applicable to small flow rate and large volume solutions filtration. Filter are sealed by means of melting, no glues and adhesives so don’t cause any pollution for the filter products. They will experience 100% integrity test, purified water washing, and pressure test before delivery. And there are various materials for selecting and using.
◇ Minimize product and filtrate residues, it’s a best choice for laboratories and small-sized mechanical terminal filter;

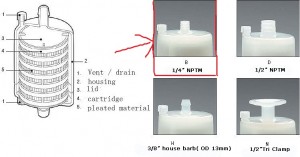

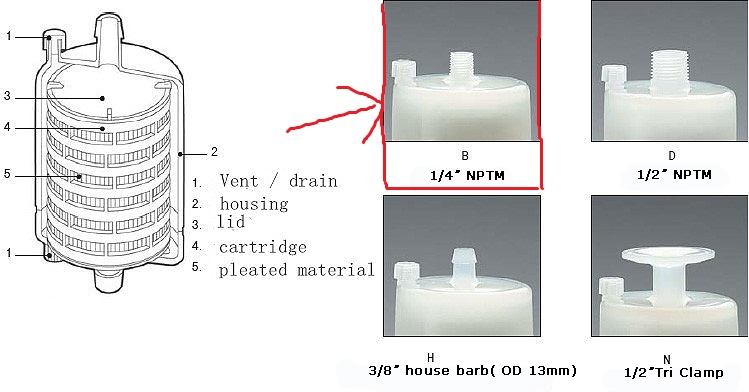

◇ Screw-based connection, making the filter easy replacement and convenient, multiple types of connectors are available for selection;
Typical Applications
◇ Online filtering of inkjet inks, inks, solvents, and corrosive solutions;
◇ Pre-filtering and precise filtrating of large-volume tissue culture solutions and laboratory
small-volume agents;
◇ The material liquid and solvent filtration of dyes and photoresist in optical storage industry;
◇ Pre-filtering and precise filtrating of air, nitrogen, and carbon dioxides;
Material Construction
◇ Filter medium: PP, PES, PTFE, N66, Stainless steel
◇ Support/drainage: PP
◇ Core and cage: PP
◇ O-rings: see the cartridge list
◇ Seal method: melting
Operating Conditions
◇ Maximum pressure: 60 psi (4.1 bar), 25°C
◇ Sterilization temperature: 121°, 15 min (disinfection cabinet or pressure cooker)
◇ Maximum operation pressure range: 0.01~0.25 MPa, 0~50°C
◇ Maximum pressure difference: 0.28 MPa, 0~25°C
Key Specifications
◇ Removal rating: 0.01, 0.02, 0.1, 0.2, 0.45, 1.0, 1.5, 3.0, 5.0, 10 (unit: μm)
◇ Effective filter area: 158~2000 cm2
◇ Filter length: 45~192cm
Ordering Information
|
□ |
○ |
☆ |
|
△ |
||||||
|
No. |
Filter medium |
No. |
Removal rating (μm) |
No. |
Filter area |
No. |
Packing quantity |
|||
|
P |
PP |
001 |
0.01 |
10 |
1000 cm2 |
1 |
1pcs |
|||
|
S |
PES |
002 |
0.02 |
20 |
2000 cm2 |
3 |
3pcs |
|||
|
F |
PTFE |
010 |
0.1 |
30 |
Others |
6 |
6pcs |
|||
|
N |
N66 |
020 |
0.2 |
|
|
|
|
|||
|
S |
Stainless steel |
045 |
0.45 |
|
|
|
|
|||
|
|
|
100 |
1.0 |
|
|
|
|
|||
|
|
|
150 |
1.5 |
|
|
|
|
|||
|
|
|
|
300 |
3.0 |
|
|
|
|
|
|
|
|
|
|
500 |
5.0 |
|
|
|
|
|
|
|
|
|
|
10H |
10 |
|
|
|
|
|
|
